CO2 Regulator Brackets

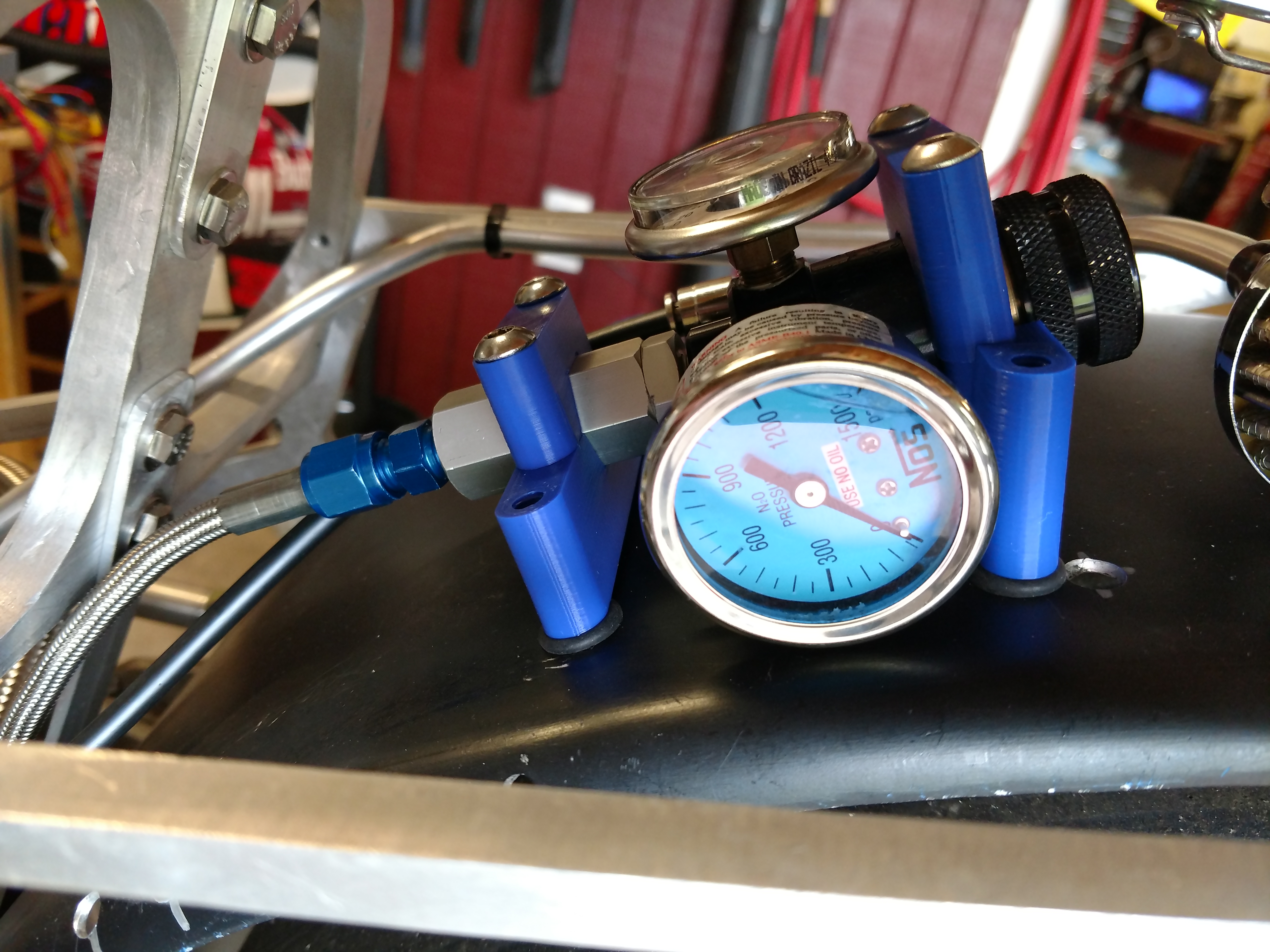

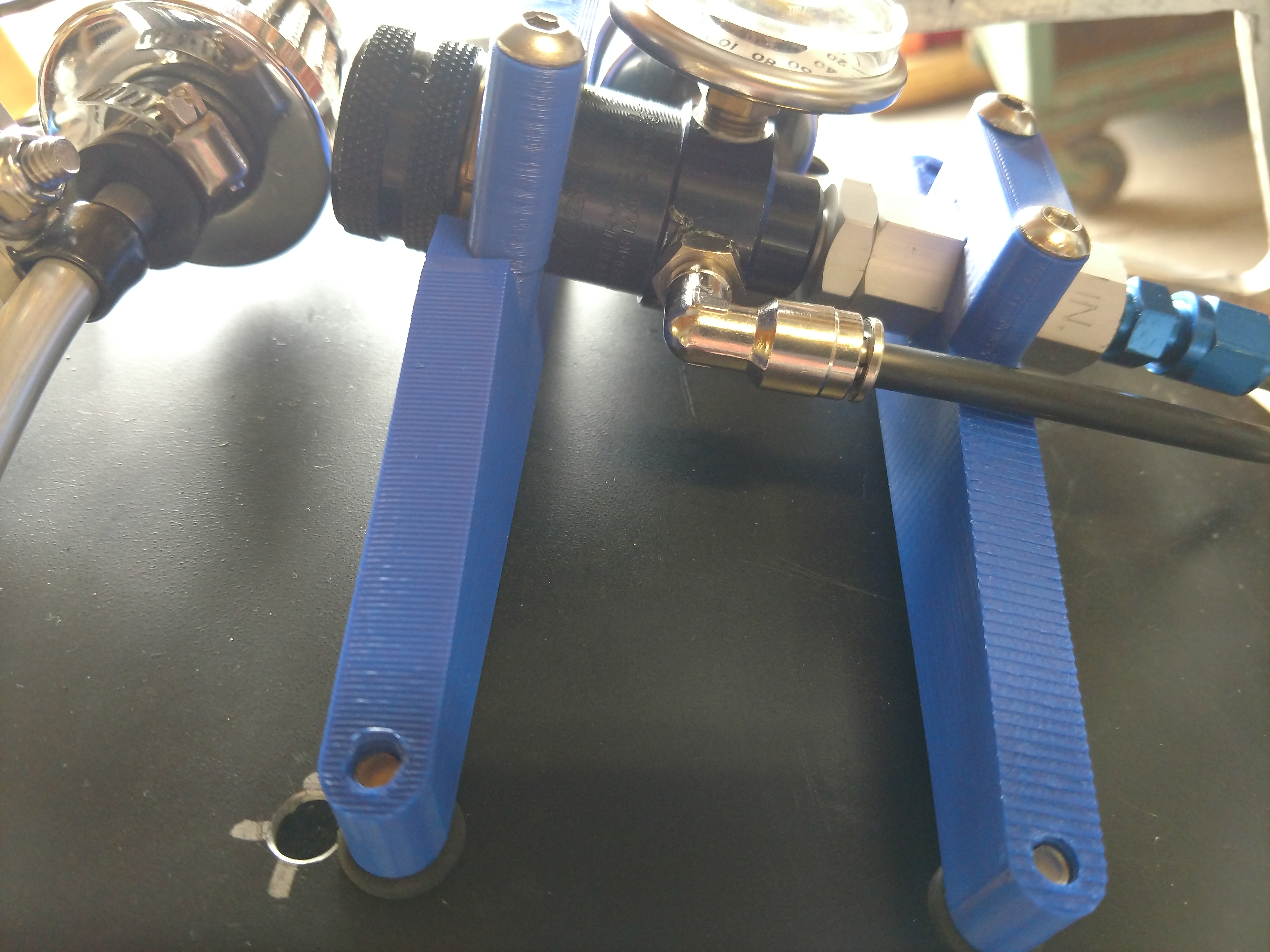

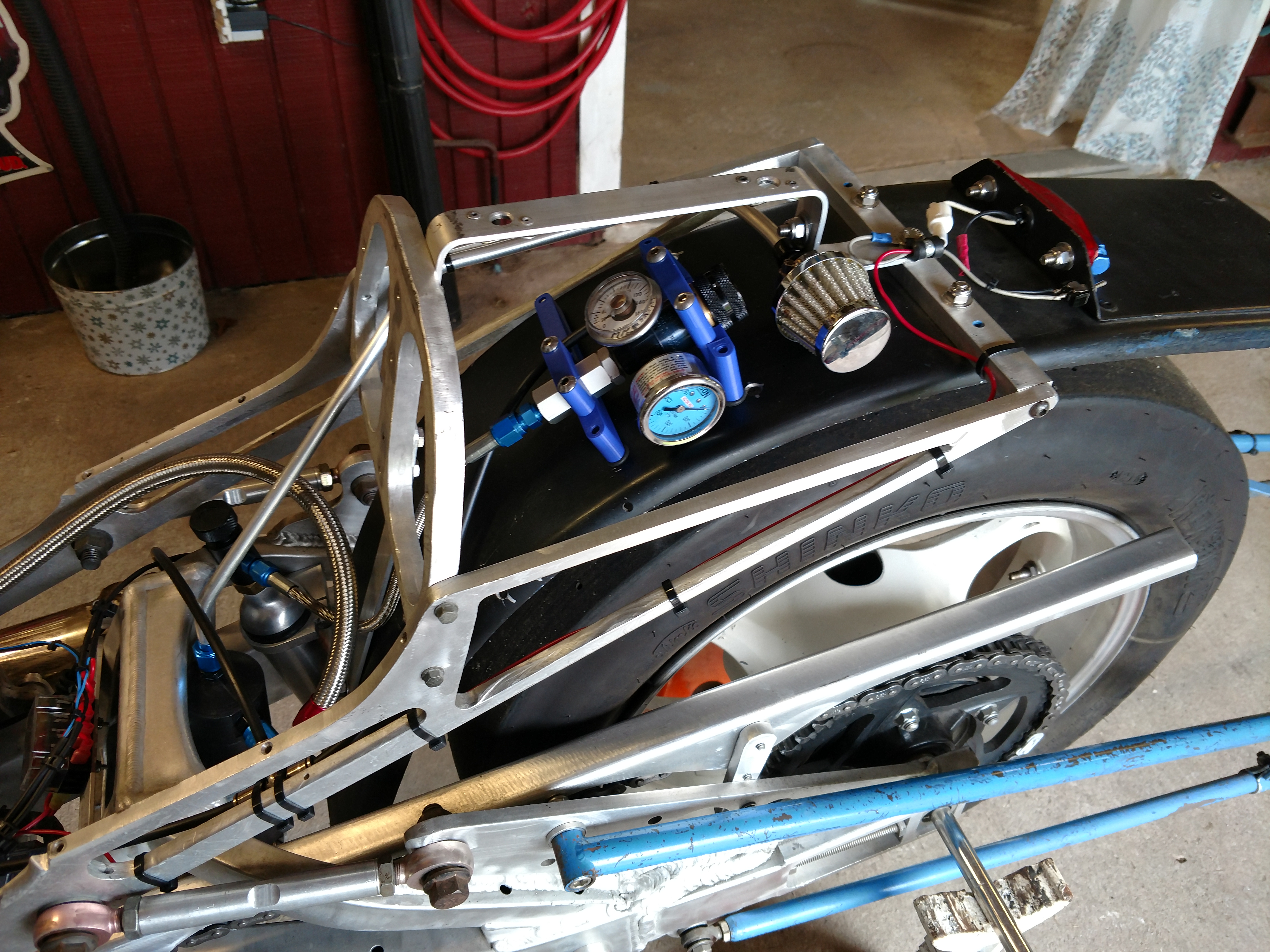

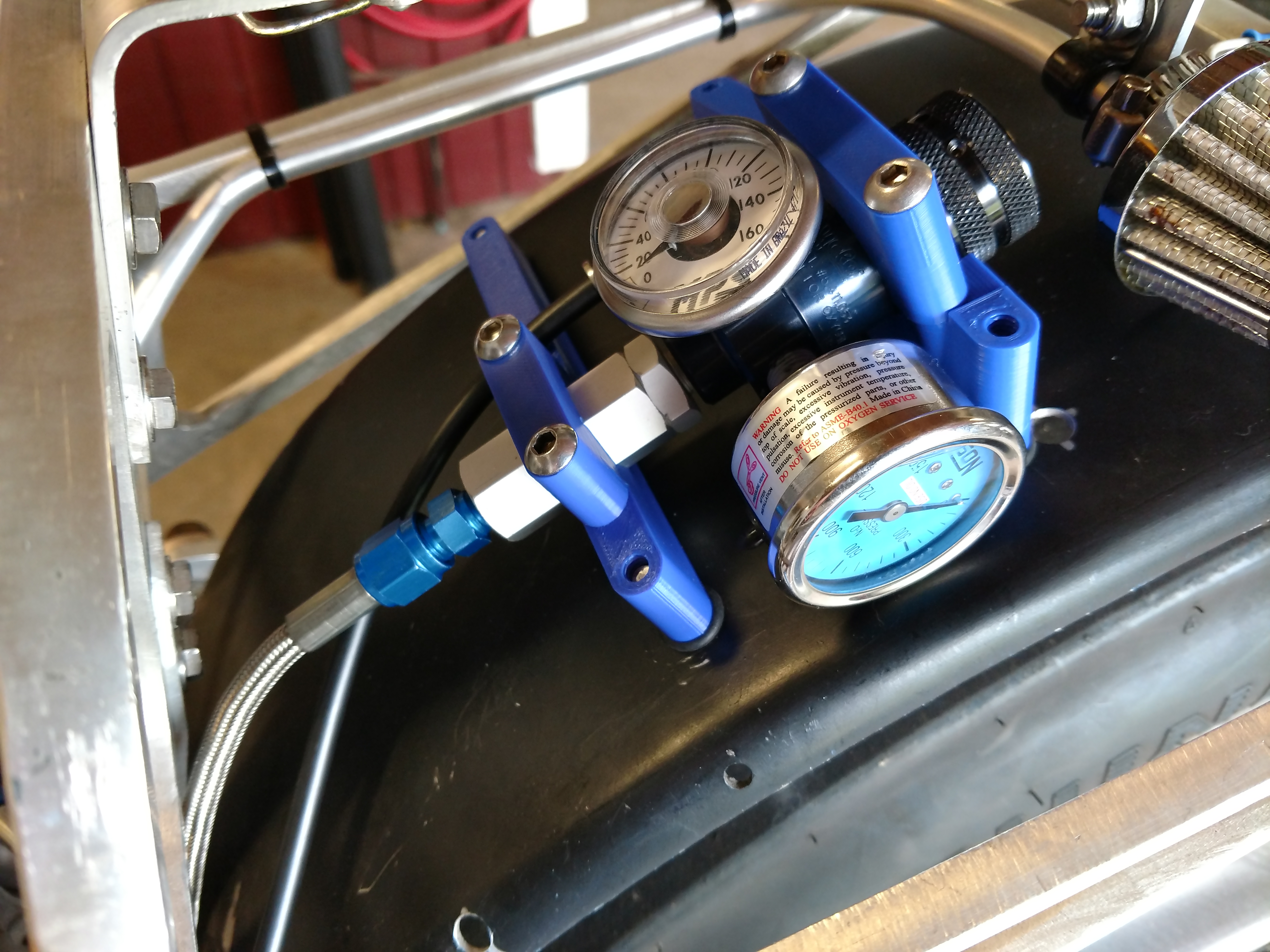

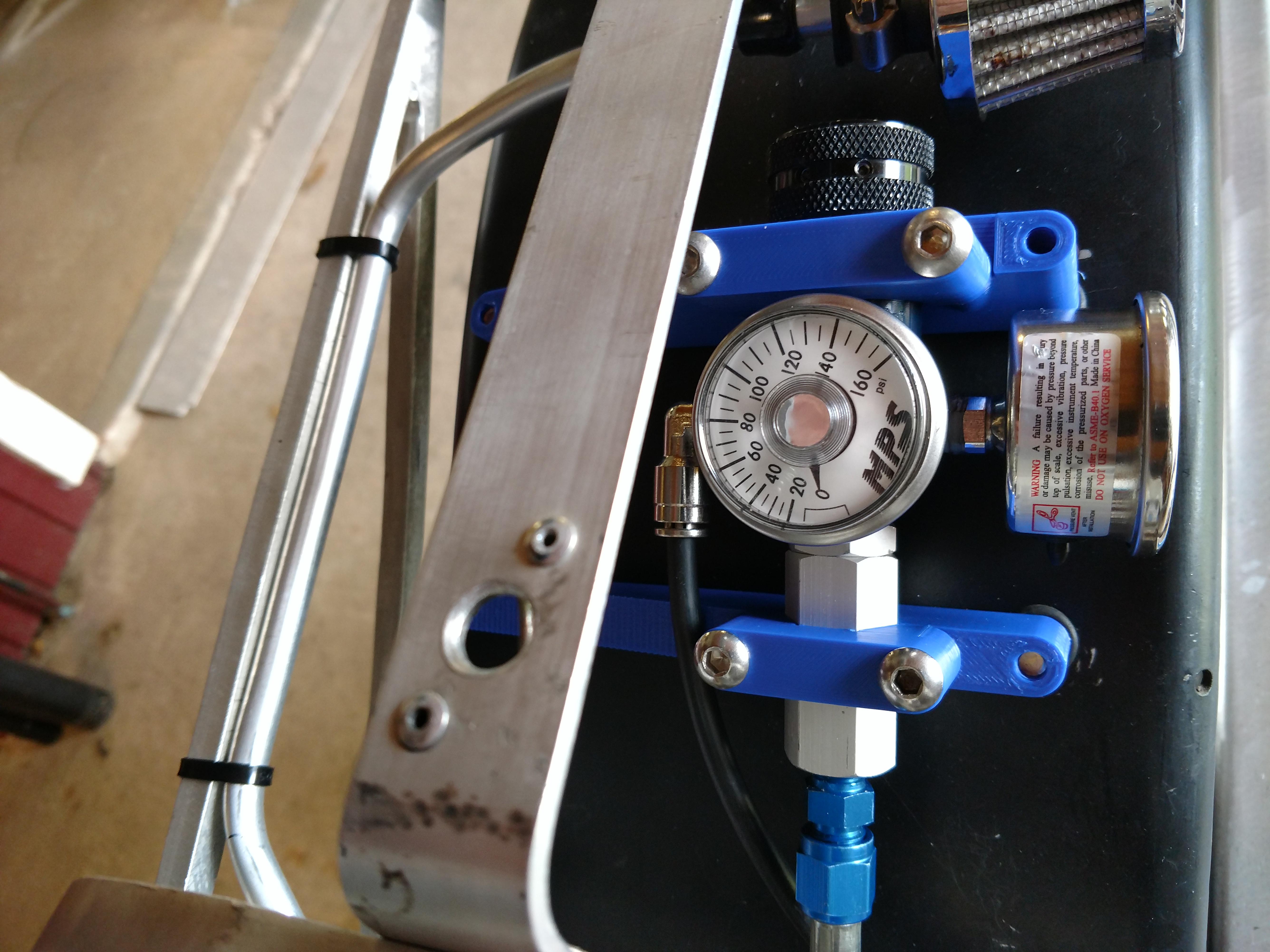

These are 3D printed ABS brackets. I already had holes in my rear
fender for my old shift controller, and I was not happy about the
mount and location of my regulator, so I designed and printed a
pair of brackets.

Because of the curve of the fender, the regulator clamp had to be
at a 13 degree angle. This is one of the advantages of 3D printed
parts. Odd angles can be baked into the design just as easily as
90's and 45's.
